Nd Vanadate Laser Rod - 4Фx10mm Long, 0.5%Nd

Price   £140

End finish 10-5, λ/10 over 80% aperture, parallel to +/-5’

5+      £112

AR coated at 810nm (R<1.0%) and 1064nm (R<0.2%)

10+    £ 98

Manufactured by VLOC and supplied in original sealed box

Part 1225129YA

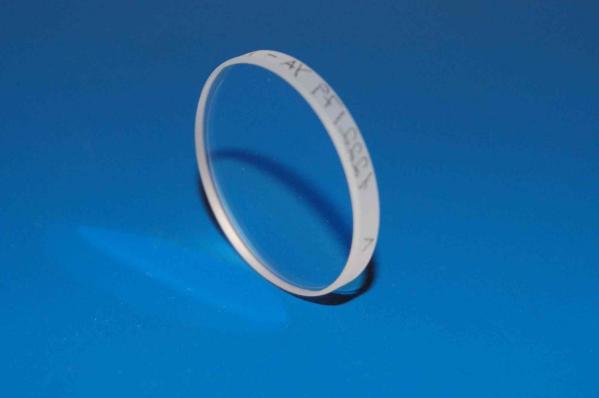

End Pump Flat Rear Mirror - 25.2Фx3mm thick

Price   £ 25

Face ‘a’ R>99.9%R@1064nm, <0.25%R@808nm

5+      £ 20

Face ‘b’ 0.25%R@808nm. Total transmission @808nm>97%

10+    £ 15

Damage threshold >5MW/cm²@1064nm

Part 1222176YA

End Pump Flat Rear Mirror - 12.4Фx3mm thick

Price   £ 25

Face ‘a’ R>99.9%R@1064nm, <0.25%R@808nm

5+      £ 20

Face ‘b’ 0.25%R@808nm. Total transmission @808nm>97%

10+    £ 15

Damage threshold >5MW/cm²@1064nm

Part 1222177YA

End Pump Convex Rear Mirror – 25.2Фx3mm thick

Price   £ 25

Face ‘a’ 0.5m CX, R>99.9%R@1064nm, <0.25%R@808nm

5+      £ 20

Face ‘b’ 0.25%R@808nm. Total transmission @808nm>97%

10+    £ 15

Damage threshold >5MW/cm²@1064nm

Part-1222179YA

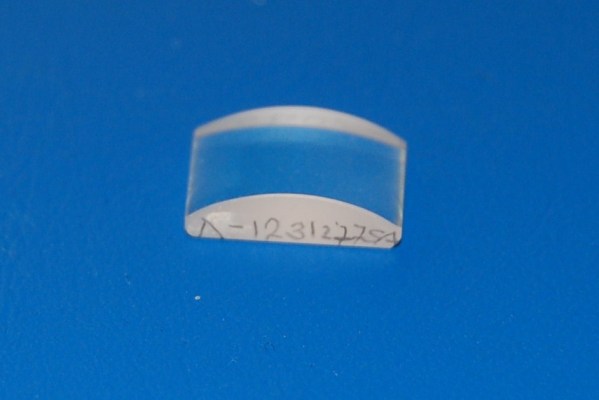

Cylindrical Lens –12.5mm FL

Price   £ 30

7mmx12mm, AR/AR coated at 808nm

5+      £ 24

Useful for side pumping  using a FAC diode

10+    £ 18

Manufactured by Laser Components GmbH

Part 1231277SA

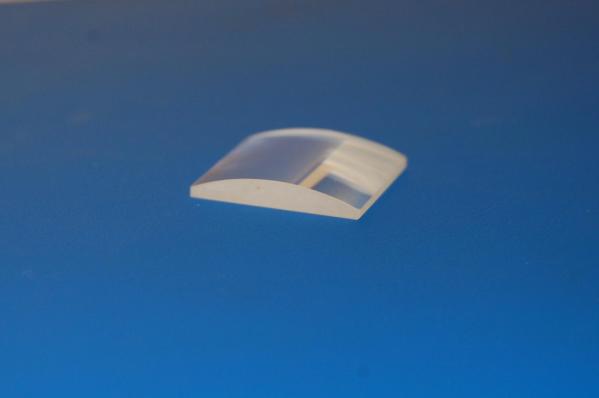

Cylindrical Lens – 40mm FL

Price   £ 25

25mm square, 5mm thick. AR/AR coated at 808nm.

5+      £ 20

Useful for end pumping  using a FAC diode

10+     £ 15

Manufactured by Laser Components GmbH

Part 1231278SA

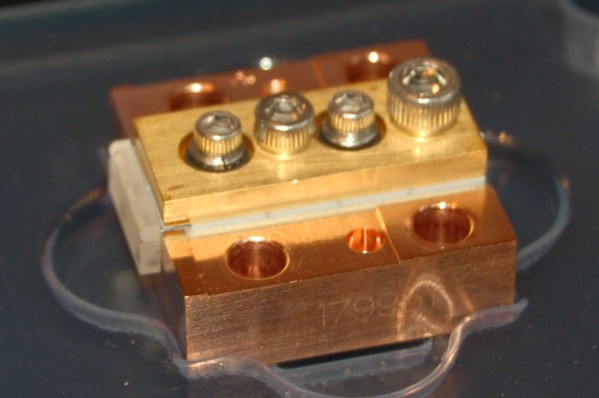

Laser Diode Bar – 808nm, 40W Fast Axis Collimated

Price   £300

Passively cooled – requires heatsink. 37W after lens.

3+      £225

1cm long bar, 19 emitters, 30% fill factor.

5+      £195

Manufactured by Coherent (B1-808-40C-19-30-A/L) and supplied in their original sealed antistatic box and bag.

Part OP010337

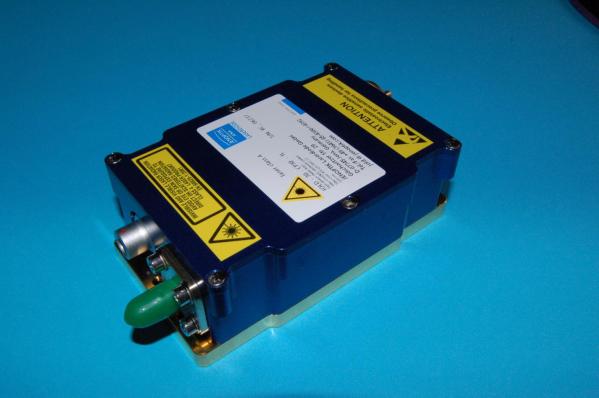

Fibre Coupled Laser Diode Bar – 808nm, 30W CW

Price   SOLD

Passively cooled with integrated TEC.

3+      SOLD

Suitable for use with 0.6mm, NA 0.22 fibre – NOT supplied

5+      SOLD

Manufactured by Jenoptik (JOLD-30-CPXF-1L) - supplied in their original sealed antistatic bag.

Part OP010376
